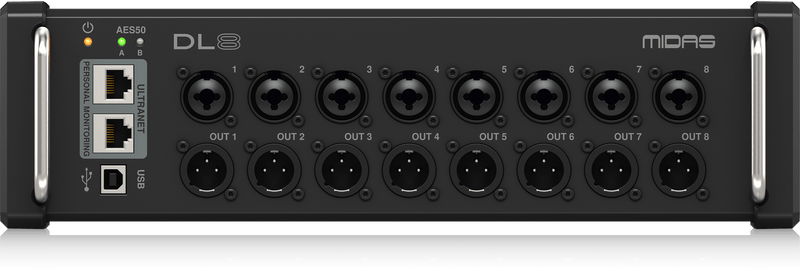

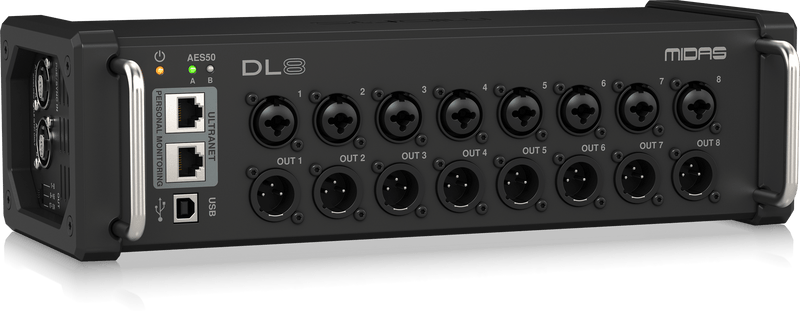

MIDAS DL8 STAGEBOX 8IN/8OUT
The DL8 Stage Box provides 8 of our award-winning Midas PRO microphone preamplifiers with switchable +48 V phantom power; 8 electronically balanced low impedance line level; integrated ULTRANET distribution hub for connecting to Behringer P16-M personal monitor mixers or Turbosound speaker systems; plus dual AES50 SuperMAC ports for cascading additional StageBoxes.
Engineers at Midas, Klark Teknik, Turbosound and Behringer have come together to create a rock-solid, easy to deploy, lowest-latency, long-distance, multi-channel audio transmission interface. The Ultranet technology has meanwhile proven to seamlessly transmit 16 channels of 24-bit audio over standard CAT5 cable up to 75m length, in hundreds of thousands of applications world-wide -- connecting mixers, I/O boxes, powered loudspeakers and personal monitoring systems. Ultranet effectuates a powerful digital eco-system that combines highest reliability, with unparalleled ease of use and flexibility.
Connecting over a single shielded (STP) CAT5 cable, up to three DL8s can be daisy-chained to deliver 48 channels in and 48 out to the stage. Klark Teknik’s AES50 simultaneously provides high channel counts, extremely low and deterministic latencies, accurate phase-aligned networked clock distribution, error detection, network redundancy, with simple deployment and ease of use to meet the needs of the live performance industry. This unique combination also benefits both live and studio recording applications, as well as post-production, broadcasting and audio routing infrastructure.
